Achieve perfect angles with the HQ400-B CNC Busbar Bending Machine. Specifically designed for the UK electrical fabrication sector, this high-precision system offers automated bending for copper and aluminium busbars up to 400kN. Ideal for creating bespoke offsets, U-bends, and complex profiles for switchgear and power distribution cabinets. Features advanced CNC control for consistent accuracy, reduced material waste, and full compliance with UK industrial safety standards.

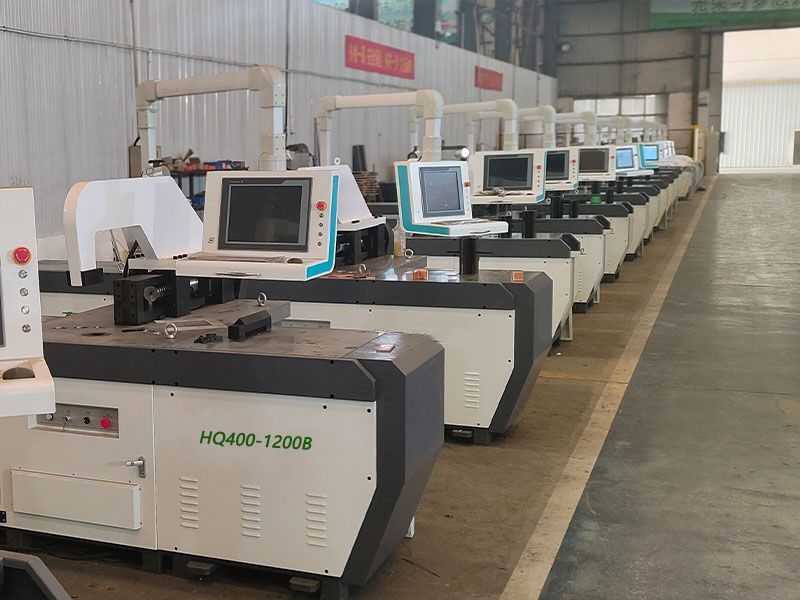

The LT HQ400-B CNC Busbar Bending Machine is the ultimate industrial solution for high-precision, automated folding of copper and aluminium busbars. Engineered specifically for the UK power distribution sector, this busbar machine combines advanced servo motor technology with seamless CAD/CAM integration. It is designed to meet the rigorous demands of British switchgear manufacturers, transformer builders, and EV infrastructure suppliers who require uncompromising accuracy and repeatable results.
In the modern UK electrical fabrication landscape, the HQ400-B sets the standard for bespoke copperwork. Utilizing a robust closed-bending structure, it ensures long-term stability without mechanical deformation. Whether you are creating complex offsets, U-bends, or vertical folds for LV/MV distribution boards, this busbar machines technology delivers a bending accuracy of ±0.3°, significantly reducing material waste and manual rework.
Ultra-Precision Bending: Achieve consistent angles with ±0.3° accuracy and back-gauge positioning of ±0.15 mm.
Closed-Bending Structure: Enhanced mechanical integrity for high-tonnage folding (up to 400kN) without frame deflection.

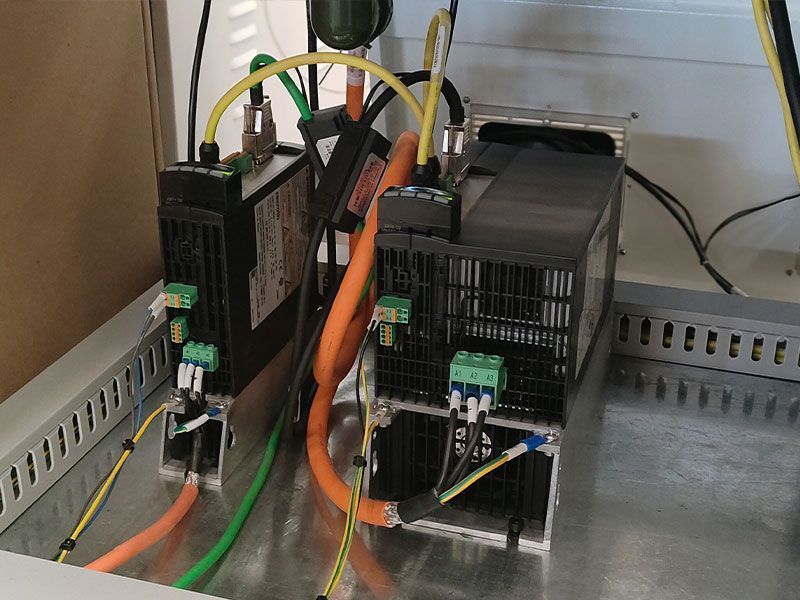

Full Servo Motor Drive: Provides high-pressure output with energy-efficient operation and silent performance, ideal for UK industrial environments.
Smart CAD/CAM Software: Instantly generates 3D models and machining codes from DXF files, supporting batch production and smart factory workflows.
| Performance Metric | Specification Data |
|---|---|
| Max. Bending Size | 15mm x 200mm (Copper & Aluminium) |
| Bending Force | 400kN |
| Bending Accuracy | ±0.3° |
| Positioning Precision | ±0.15 mm |
| Processing Speed | CNC Variable Servo Control |
| Bending Types | Flat, Vertical, U-Bend, Z-Bend, Offsets |
Discover how the HQ400-B CNC Bending Centre automates complex copper profiling for the UK power engineering industry.
Low & High Voltage Switchgear: Precision bending for main busbars and branch links in distribution boards.
Transformer & Bus Duct Systems: Manufacturing heavy-duty copper conductors for UK power grid infrastructure.
Renewable Energy & EV Power: Efficient production of busbars for wind farm substations and EV charging hubs.
Industrial Control Panels: Creating compact, multi-bend profiles for bespoke control gear cabinets.
1. How does the machine handle springback compensation for UK copper standards?
The CNC Busbar Bending Machine software includes an intelligent springback database. It automatically calculates and adjusts the bending stroke based on material thickness and copper grade to ensure the final angle meets the precise design specification.
2. Can we import design files directly from our UK engineering office?
Yes. The integrated CAD/CAM system allows for the direct import of DXF files. The software then automatically unfolds the 3D drawing to determine the correct cutting length and bending sequence, streamlining your local production workflow.
3. Is the HQ400-B suitable for high-volume Earth Bar production?
Absolutely. With its high-speed servo drive and batch file processing capability, it is the ideal tool for the rapid production of standard and bespoke earth bars used by British electrical contractors.
