Maximize your workshop efficiency with the 803U-3-C 3-in-1 Busbar Machine. This ultimate CNC solution for the UK electrical industry integrates precision copper cutting, punching, and bending into one compact station. Designed for switchgear manufacturers and panel builders, it ensures high-speed processing of copper and aluminium busbars with minimal setup time. Features robust hydraulic power and intuitive CNC controls to deliver accurate results for bespoke busbar fabrication and maintenance projects.
The 803U-3-C is the definitive all-in-one solution for the modern British busbar workshop. This powerful busbar machine seamlessly integrates three essential functions: precision cutting, high-speed punching, and accurate CNC bending into a single, space-saving workstation. Specifically designed for UK switchgear manufacturers and panel builders, it eliminates the need for separate machines, streamlining the production of copper and aluminium conductors for LV/MV distribution boards.
Discover how the 803U-3-C Combined Unit delivers professional-grade CNC Busbar Punching Cutting Machine results and precision bending in a compact footprint.
Compact All-in-One Efficiency: A versatile 3-in-1 system that saves valuable workshop floor space while reducing material handling time.

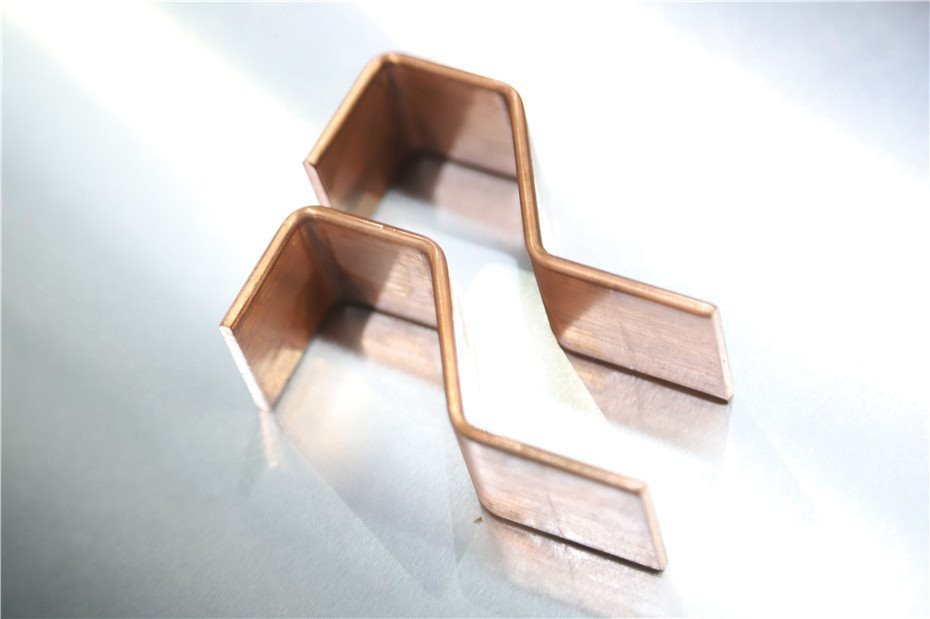

Advanced CNC Bending Technology: Achieve perfect, repeatable folds for bespoke copper profiling with an easy-to-program interface.
Heavy-Duty Oil Cooling System: Specifically engineered to maintain stable hydraulic performance during continuous, heavy-duty operation in industrial environments.
Precision Punching & Shearing: Delivers clean, burr-free edges and accurate hole patterns compliant with British electrical safety standards.
| Feature / Capability | Technical Data |
|---|---|
| Machine Model | 803U-3-C (CNC 3-in-1 Unit) |
| Functions | Punching, Cutting, Bending (Integrated) |
| Max. Processing Size | 12mm x 160mm / 16mm x 200mm (Optional) |
| Bending Accuracy | ±0.3° (CNC Controlled) |
| Punching Force | 300kN - 500kN (Depending on Configuration) |
| Cooling System | Automated Industrial Oil Cooler |
| System Component | Industrial Quality Grade |
|---|---|
| Hydraulic Pump | High-Pressure Silent Operation Unit |
| CNC Control Unit | User-friendly Touchscreen with Angle Calculation |
| Punching Dies | Hardened Tool Steel (Round, Oval, Bespoke) |
| Shearing Blades | Non-Deformative High-Carbon Steel |
1. Why is the 3-in-1 design better for UK small-to-medium enterprises (SMEs)?
The combined station is significantly more cost-effective and occupies 50% less space than buying three separate units. It is the ideal busbar machines solution for UK panel shops where floor space and initial capital investment are key considerations.
2. Can it process copper for Earth Bar and Neutral Bar manufacturing?
Yes, the 803U-3-C is perfect for fabricating bespoke earth bars. The punching station can be equipped with various die sizes to meet standard British bolt clearances, while the cutting unit ensures clean ends every time.
3. How does the oil cooling system benefit my production?
In high-volume environments, hydraulic oil can overheat, leading to seal failure and inconsistent bending. Our integrated cooling system ensures the machine remains at an optimal temperature, extending the service life and maintaining precision during long shifts.
4. Is training required for the CNC bending unit?
The system is designed with an intuitive interface. Most UK operators are proficient within a few hours. We provide full technical documentation and video guides to ensure a smooth transition into your production line.
UK 3-in-1 Busbar Machine, Professional Copper Fabrication Unit, Combined Bending Punching Cutting Machine, Switchgear Assembly Tools UK, Compact Busbar Workstation, High-Efficiency Panel Building Machinery, Industrial Hydraulic Copper Processor, Bespoke Earth Bar Manufacturing Machine, CNC Busbar Folding Solution, British Electrical Engineering Equipment, All-in-one Busbar Fabrication Station, Reliable Copper Shearing Tools.
