The LTMC HQ400-1200B is a high-spec CNC Busbar Bending Machine engineered for the precision demands of the UK power industry. Capable of complex flat, vertical, and U-shape folds with absolute consistency. Ideal for Tier 1 switchgear manufacturers and panel builders. Boost your workshop efficiency with LTMC’s industry-leading CNC forming technology. UK-wide technical support available.

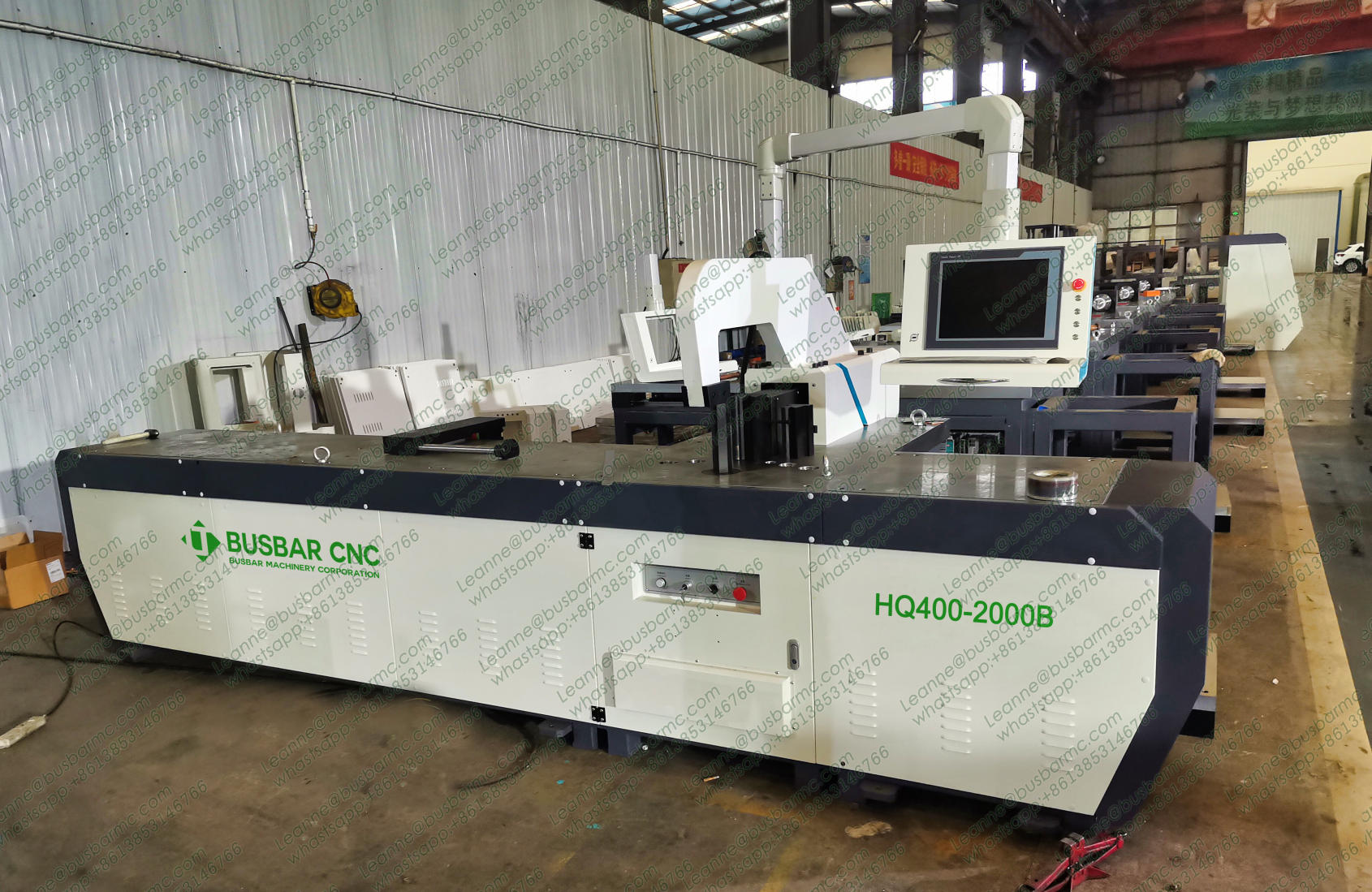

Optimise your switchgear manufacturing workshop and panel building workflow with the high-efficiency HQ400 Series CNC Busbar Bending Machine (available in heavy-duty HQ400-1200B and extended HQ400-2000B structural layouts). Engineered specifically for high-capacity industrial projects across the UK and European electrical engineering sectors, this premium busbar fabrication machinery provides flawless engineering precision for profiling heavy-gauge copper conductor bars and solid aluminium profiles. Featuring a rigid enclosed mechanical chassis and fully integrated automated backgauges, it offers flexible metal forming processing including flat horizontal bends, precision vertical folding (edge bending), and complex bespoke U-bends for smart grid infrastructures and low-voltage control gear assemblies.
| Specification Parameters | HQ400-1200B Model | HQ400-2000B Model |
|---|---|---|
| Product Classification | CNC Copper Busbar Bending Machine / Conductor Folding Line | |
| Main Processing Functions | Copper & Aluminium Bar Bending, U-Bend Forming, Stand-Up (Vertical) Folding | |
| Drive System Type | Full Servo Motor Power Drive System | |
| Nominal Force / Bending Pressure | 400KN | 400KN |
| Maximum Automated Backgauge Length | 1200mm | 2000mm |
| Horizontal Bend Max Material Size | 15 x 200mm | 15 x 200mm |
| Vertical Stand-Up Max Material Size | 12 x 120mm | 12 x 120mm |
| Mechanical Gauge Repeatable Accuracy | ±0.15 mm | ±0.15 mm |
| Angular Bending Target Accuracy | ±0.3° | ±0.3° |
| Overall Machine Dimensions (L x W x H) | 3500 x 1450 x 1850 mm | 4300 x 1450 x 1850 mm |
| Net Equipment Weight | 3100kg | 3300kg |
| Place of Mechanical Origin | Shandong Factory | |
This high-performance industrial equipment adopts a fully integrated servo motor power drive system, delivering high rated output pressure coupled with outstanding mechanical transmission stability and nanosecond positioning response. This intelligent CNC bender can be seamlessly paired with the MX602K multi-station series or our high-capacity CNC busbar punching and shearing lines. Our in-house developed CAD/CAM engineering and programming software automatically expands 2D drawings into complete bending diagrams, dynamically generates tracking parameters for cutting operations, and uploads the compiled CNC processing code straight into the server environment.
The NC40ZB structural layout incorporates an advanced closed bending mechanical design. This balanced, closed loop load distribution provides immense structural rigidity compared to historic open-frame first-generation machinery. The heavy-duty structural frame and precise industrial-grade welding shield the assembly from high-load stress, guaranteeing long-term manufacturing operations without structural warping or frame misalignment. The physical backgauge positioning mechanics travel smoothly along dual linear guide rails driven by a high-precision ball screw for silent, vibration-free operation.
Equipped with a powerful, vibration-resistant Industrial Computer (IPC) and specialized PLC self-programming automation routines, the high-torque servo motor precisely manages acute bending angles and target material-blocking clearances. Enhanced by bespoke CAD assistant engineering utilities, the system delivers remarkable system runtime stability, clear template handling options, and significantly lower diagnostic maintenance overheads.
The HQ400 series industrial CNC bender is built from the ground up for high-throughput volume production. When configured with our specialized, rapid-change modular tooling assemblies, it swiftly processes high-volume batch runs of horizontal flat bending, vertical stand-up folding, and specialized pipe section bending on conductive copper busbars, achieving unmatched efficiency in plant output.
Engineered for rapid multi-die tooling switchovers to keep machine downtime to an absolute minimum. The high-speed material handling backgauges maintain a repeatable blocking tolerance of ±0.15 mm, working in harmony with a certified final angular bending accuracy of ±0.3°.
Extensive bespoke multi-die customization options are available to fulfill your plant specification mandates. Standard horizontal flat bending setups effortlessly support copper conductor sections up to a maximum profile dimension of 15x200mm.
Our proprietary CAD assistant design utility allows engineering staff to leverage factory pre-sets or map original custom components. It features one-key generation of comprehensive 3D copper/aluminium busbar models. Modifying physical segment lengths, geometric angles, or adding hole patterns is exceptionally intuitive, allowing engineers to position slots rapidly before exporting compiled G-code files. This advanced software supports batch-file imports for visible file tracking while intelligent nested-run algorithms calculate stock usage to eliminate costly material scrap.
The main CNC operating system features a refined HMI touch control interface, significantly shrinking the operator onboarding process and simplifying multi-stage production setups.
Q1: Which types of conductor materials can the HQ400 series process, and what custom tooling options are available?
The HQ400-1200B and HQ400-2000B systems are purposely developed to shape high-conductivity copper busbars and industrial-grade insulated aluminium sections. Each machine comes equipped with standard-issue tooling assemblies engineered for flat horizontal bends, vertical stand-up folding (edge manipulation), and structural U-bends. Custom multi-shape forming dies can be precision-machined by our factory to match your precise engineering drawings and switchgear specifications.
Q2: How does the integrated CAD/CAM processing software link with our existing sheet metal punching and shearing assets?
Our intelligent CNC copper busbar bending machine operating suite seamlessly unfolds 3D fabrication templates to compute true flat development lengths. The software automatically coordinates bending data with the cutting lines of your punching and shearing machinery, eliminating human data entry errors, accelerating production cycle times, and minimizing costly copper scrap.
Q3: What are the expected delivery schedules, shipping ports, and commissioning arrangements for British switchgear manufacturers?
Standard production configurations are exported directly from Qingdao or Xiamen ports straight to major UK sea freight hubs such as the Port of London, Port of Liverpool, or Southampton. Sea transit and customs clearance typically average 30-45 days. We provide comprehensive interactive digital setup tutorials, complete wiring layouts, and global field engineering deployment for on-site machinery calibration, structural installation, and operator training.
