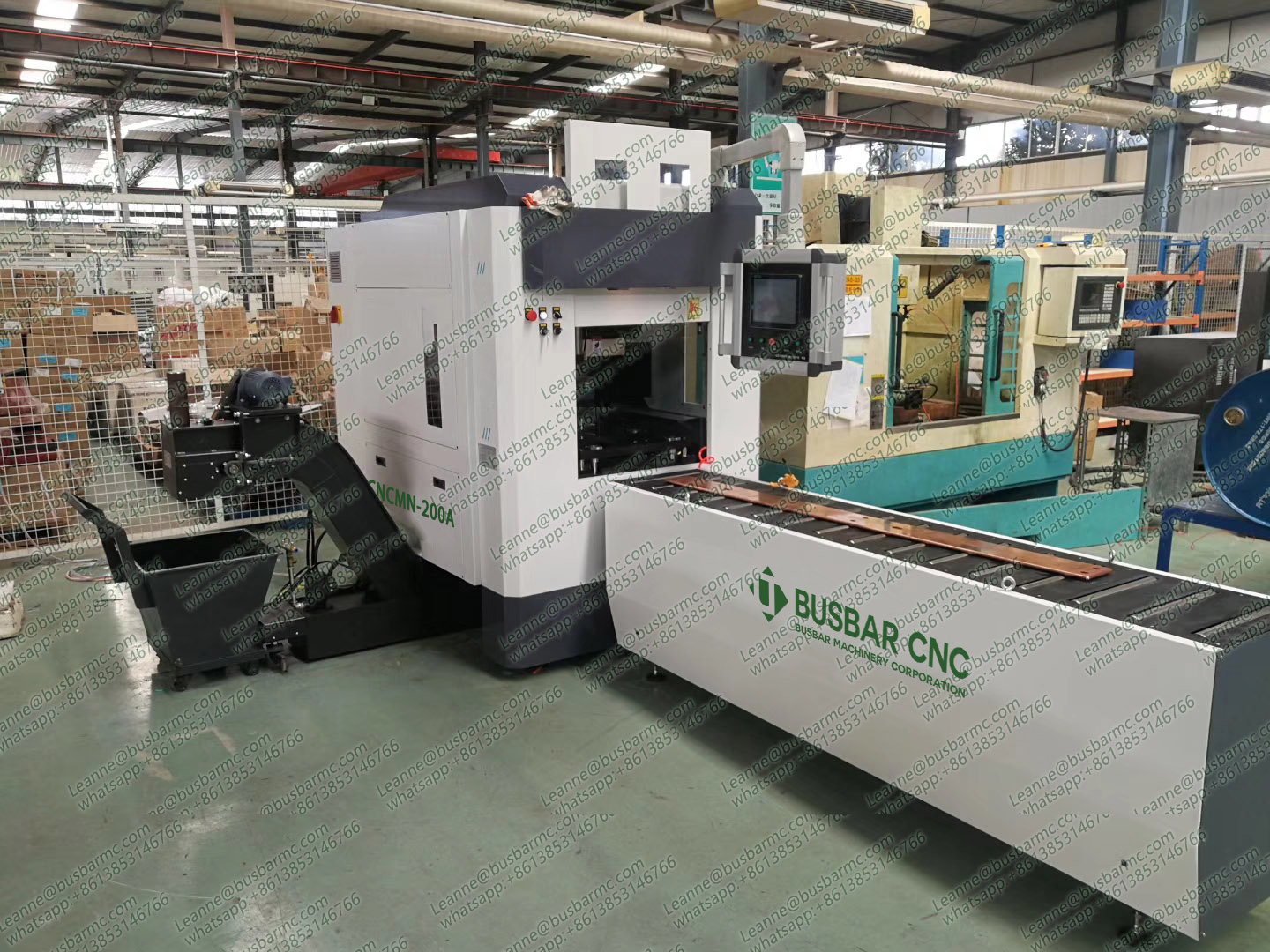

The LT CNCDMN-200A is a high-efficiency automated busbar corner milling machine under computer control on 11 CNC axes, designed for fully...
The LT CNCDMN-200A is a high-efficiency automated busbar corner milling machine under computer control on 11 CNC axes, designed for fully CNC-controlled corner milling of copper and aluminium busbars. It uses a dual-gantry spindle processing method, so during busbar processing no manual intervention is required — the machine delivers fast processing speed, high precision and high efficiency without an operator at the spindle. It is intended for production lines but also works as a standalone machine, and the conveyors at both ends can be aligned with upstream and downstream equipment for seamless integration into a busbar cell.
Test conditions: Fully CNC-controlled corner milling of copper and aluminium busbar using a dual-gantry spindle processing method, with no manual intervention during processing.
Measured values: 11-axis CNC control; 2 gantry spindles working simultaneously on the busbar ends; conveyors at both ends able to align with upstream and downstream equipment; usable as a standalone machine or as part of a production line.
Benchmark: Dual-gantry simultaneous milling against milling one end at a time: both ends of the bar are machined in the same cycle, so the two ends are produced from one datum rather than two.
\n Product : \n
\n\n CNC Busbar Milling Machine \n
\n\n Serial：CNCDMN-200A \n
\n
\n
\n
\n Main Function: \n
\n
\n
\n
\n This machine is a high-efficiency, automated busbar corner milling machine controlled by a computer (11-axis CNC), \n
\n\n specifically designed for fully CNC-controlled comer milling of copper and aluminum busbars. \n
\n
\n
\n
\n Main Feature: \n
\n
\n
\n

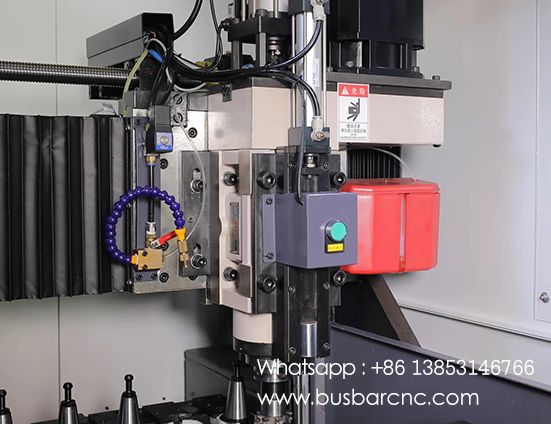

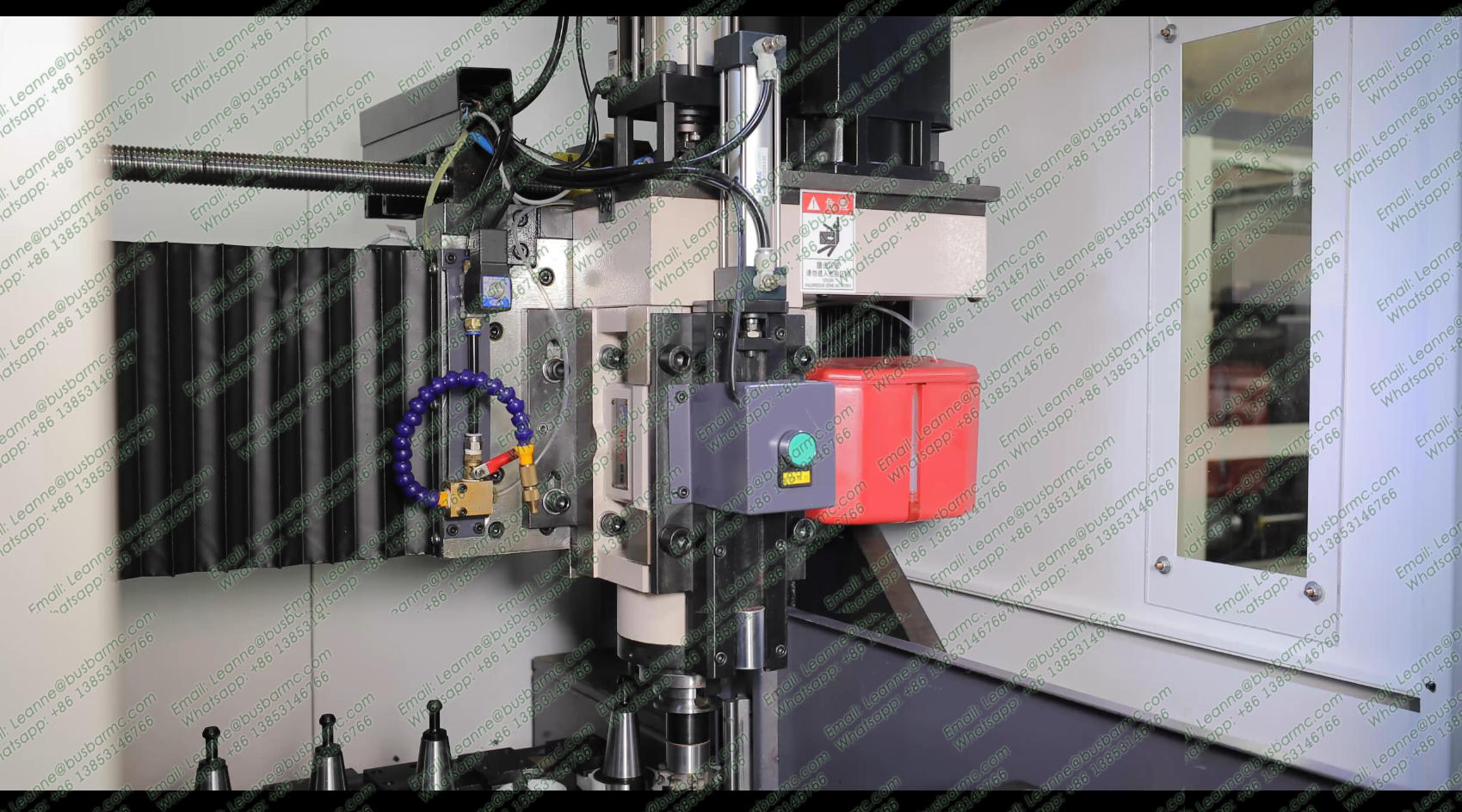

\n The equipment uses a dual-gantry spindle processing method, and during the busbar processing, no manual \n
\n\n intervention is required. It offers advantages such as fast processing speed, high precision, and high efficiency. \n
\n\n This equipment is mainly used for production lines but can also be used as a standalone machine. \n
\n\n The conveyors at both ends can be aligned with upstream and downstream equipment for seamless integration, \n
\n\n fully achieving automated production line operations. It is widely used in industries such as low and high-voltage \n
\n\n switchgear, switch cabinets, and box-type substations. \n
\n
\n
\n

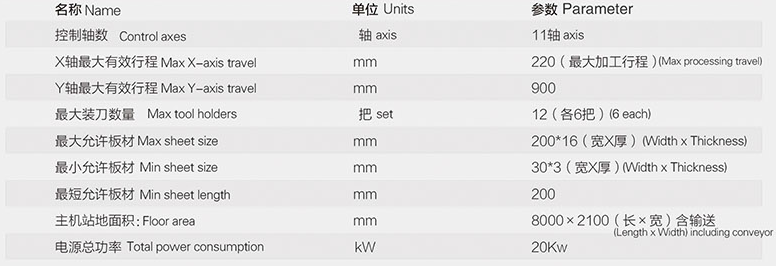

\n Technical Parameters: \n
\n
\n
\n
\n
\n

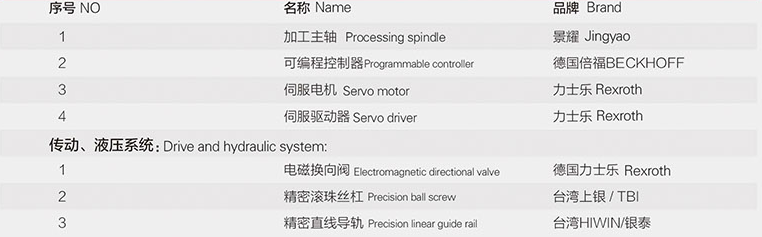

\n Optional Accessories: \n
